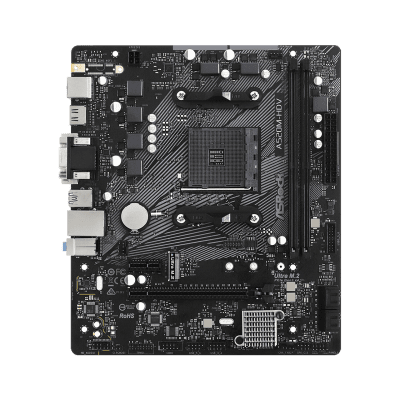

Дънна платка ASRock A520M-HDV
Арт.№: A520M-HDV
1 от 4
ППЦ:
лв.
лв.
109.45
лв.
/
55.96
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Купи на изплащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики - Процесор: AMD Ryzen
- Сокет: AMD AM4
- Макс. брой инсталирани процесори: 1
- Поддържана памет: DDR4
- Форм фактор на паметта: DIMM 288-pin
- Дънни платки
- ASRock
Информация
| Уникални функции | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Процесор | - Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors* - 6 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
|
| Чипсет | - AMD A520 |
| Памет | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - Supports Изключителен профил на паметта (XMP) memory modules - 15μ Gold Contact in DIMM Slots *For Ryzen Series APUs (Cezanne and Renoir), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support. For more details. Ryzen Series CPUs (Vermeer):  Ryzen Series CPUs (Matisse): Ryzen Series APUs (Cezanne): Ryzen Series CPUs: SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label **Поради ограничението на операционната система, действителният размер на паметта може да е по-малък от 4 GB за резервацията за използване на системата под Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
| Графика | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Споделена памет с оригиналния продукт 2GB. Максималната обща памет поддържа до 16 GB.** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 2.1 with max. резолюция up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. резолюция up to 1920x1200 @ 60Hz - Supports D-Sub with max. резолюция up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft® PlayReady *Действителната поддръжка може да варира в зависимост от процесора
**Максималната споделена памет 16 GB изисква инсталирана 32GB системна памет. |
| Аудио | - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) - Supports Surge Protection |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Слотове | - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 3.0 x1 Slot *Поддържа NVMe SSD като дискове за начално зареждане
|
| Съхранение | CPU: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: - 4 x SATA3 6.0 Gb/s Connectors *Поддържа NVMe SSD като дискове за начално зареждане
Supports ASRock U.2 Kit |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA устройства за съхранение |
| Конектор | - 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *Конекторът за вентилатора на CPU поддържа вентилатора на CPU с максимална мощност на вентилатора 1A (12W).
**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. CHA_FAN2 могат автоматично да открият дали, 3-пинов или 4-пинов вентилатор е в употреба. |
| Заден панел с входове и изходи | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Софтуер и UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Мигновен Flash *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
|
| CD с поддръжка | - Drivers, Utilities, AntiVirus Software (Trial Version) |
| Аксесоари | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Хардуерен монитор | - Temperature Sensing: CPU, Chassis - Fan Tachometer: CPU, Chassis Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans - Fan Multi-Speed Control: CPU, Chassis Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Форм фактор | - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design |
| OC | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Сертификати | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Официална страница на продукта:
https://www.asrock.com/MB/AMD/A520M-HDV/index.bg.asp
