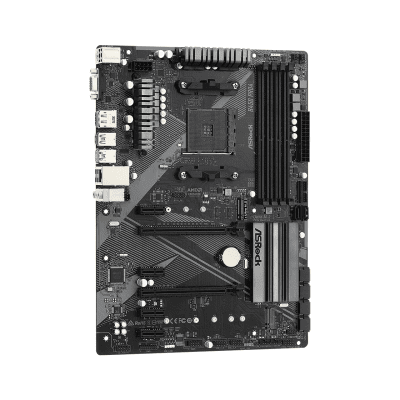

Дънна платка ASRock B450 Pro4 R2.0
Арт.№: B450 PRO4- R2.0
1 от 4
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Свързаност: 1 x Display Port, 1 x RJ-45, 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 1 x VGA
- Сокет: AMD AM4
- Поддържана памет: DDR4
- Чипсет: AMD B450
- Поддържани процесори: 3-то Поколение AMD, 4-то Поколение AMD, 5-то Поколение AMD
- Дънни платки
- ASRock
Информация
| Уникални функции | ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Процесор | - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors - Digi Power design - 10 Power Phase design |
| Чипсет | - AMD Promontory B450 |
| Памет | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 128GB* - Supports Изключителен профил на паметта (XMP) memory modules - 15μ Gold Contact in DIMM Slots *For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.

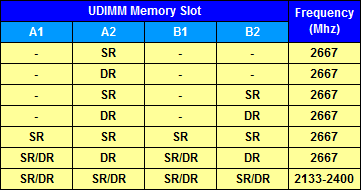

Please refer to below table for AMD non-XMP memory frequency support. Ryzen Series CPUs (Vermeer):  Ryzen Series CPUs (Matisse): Ryzen Series APUs (Cezanne): Ryzen Series APUs (Renoir): Ryzen Series CPUs (Pinnacle Ridge):  Ryzen Series CPUs (Picasso):  Ryzen Series CPUs (Summit Ridge):  Ryzen Series CPUs (Raven Ridge):  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label **Поради ограничението на операционната система, действителният размер на паметта може да е по-малък от 4 GB за резервацията за използване на системата под Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment |
| Графика | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Споделена памет с оригиналния продукт 2GB. Максималната обща памет поддържа до 16 GB.** - Three graphics output options: D-Sub, HDMI and Порт за дисплей 1.2 - Supports Triple Monitor - Supports HDMI 1.4 with max. резолюция up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports Порт за дисплей 1.2 with max. резолюция up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. резолюция up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with HDMI 1.4 and Порт за дисплей 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and Порт за дисплей 1.2 Ports *Действителната поддръжка може да варира в зависимост от процесора
**Максималната споделена памет 16 GB изисква инсталирана 32GB системна памет. |
| Аудио | - 7.1 CH HD Audio with Защита на съдържанието (Realtek ALC892/897 Audio Codec) - Supports Surge Protection |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Слотове | AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* AMD Ryzen series CPUs (Picasso, Raven Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)* AMD Athlon series CPUs - 2 x PCI Express 3.0 x16 Slots (PCIE2: x4 mode; PCIE4: x2 mode)* - 4 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™** *Поддържа NVMe SSD като дискове за начално зареждане
Ако M2_1 слота е зает, PCIE4 ще бъде деактивиран. **Тази функция се поддържа само с процесори от серията Ryzen (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge). |
| Съхранение | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)** - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** *M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.
**Ако M2_1 слота е зает, PCIE4 ще бъде деактивиран. Поддържа NVMe SSD като дискове за начално зареждане Supports ASRock U.2 Kit |
| Конектор | - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x AMD Fan LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *Поддържа общо до 12V / 3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip *** Конектора на AMD Вентилатора за LED поддържа LED ленти с максимално натоварване 3А (36W) и дължина до 2,5M. ****Конекторът за вентилатора на CPU поддържа вентилатора на CPU с максимална мощност на вентилатора 1A (12W). *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Заден панел с входове и изходи | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x Порт за дисплей 1.2 - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Софтуер и UEFI | Software - ASRock A-Tuning - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Мигновен Flash - ASRock Easy RAID Installer *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
|
| CD с поддръжка | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Аксесоари | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
| Хардуерен монитор | - Temperature Sensing: CPU, MB - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| Форм фактор | - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm - Solid Capacitor design |
| OC | - Microsoft® Windows® 10 64-bit / 11 64-bit* *Summit Ridge do not officially support Windows® 11.
|
| Сертификати | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Гаранция: 36 месеца
Официална страница на продукта:
https://www.asrock.com/mb/AMD/B450%20Pro4%20R2.0/index.bg.asp
