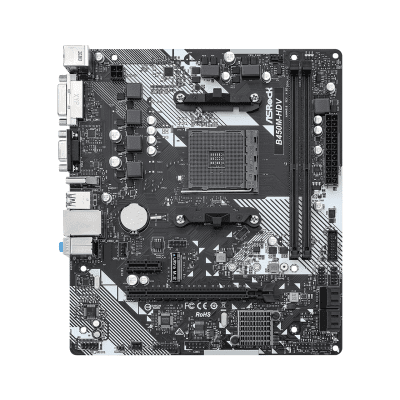

Дънна платка ASROCK B450M-HDV R4.0
Арт.№: B450M-HDV R4.0
1 от 3
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Свързаност: 1 x RJ-45, 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 1 x VGA, 1 x HD Audio Jacks
- Сокет: AMD AM4
- Поддържана памет: DDR4
- Гаранция: 36
- Чипсет: AMD B450
- Дънни платки
- ASRock
Информация
| Уникални функции | ASRock Super Alloy - High Density Glass Fabric PCB - Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Процесор | - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors - 6 Power Phase design - Supports CPU up to 105W |
| Чипсет | - AMD Promontory B450 |
| Памет | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB* - Supports Изключителен профил на паметта (XMP) memory modules - 15μ Gold Contact in DIMM Slots *For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support. Ryzen Series CPUs (Vermeer):  Ryzen Series CPUs (Matisse): Ryzen Series APUs (Cezanne): Ryzen Series APUs (Renoir): Ryzen Series CPUs (Pinnacle Ridge):  Ryzen Series CPUs (Picasso):  Ryzen Series CPUs (Summit Ridge):  Ryzen Series CPUs (Raven Ridge):  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label **Поради ограничението на операционната система, действителният размер на паметта може да е по-малък от 4 GB за резервацията за използване на системата под Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment |
| Графика | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Споделена памет с оригиналния продукт 2GB. Максималната обща памет поддържа до 16 GB.** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. резолюция up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. резолюция up to 1920x1200 @ 60Hz - Supports D-Sub with max. резолюция up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports 4K Ultra HD (UHD) playback with HDMI Port *Действителната поддръжка може да варира в зависимост от процесора
**Максималната споделена памет 16 GB изисква инсталирана 32GB системна памет. |
| Аудио | - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) - Supports Surge Protection |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Слотове | AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Picasso, Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x1 Slot *Поддържа NVMe SSD като дискове за начално зареждане
|
| Съхранение | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)* *Поддържа NVMe SSD като дискове за начално зареждане
Supports ASRock U.2 Kit |
| Конектор | - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *Конекторът за вентилатора на CPU поддържа вентилатора на CPU с максимална мощност на вентилатора 1A (12W).
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. |
| Заден панел с входове и изходи | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Софтуер и UEFI | Software - ASRock A-Tuning - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Мигновен Flash - ASRock Easy RAID Installer *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
|
| CD с поддръжка | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Аксесоари | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Хардуерен монитор | - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| Форм фактор | - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design |
| OC | - Microsoft® Windows® 10 64-bit / 11 64-bit* *Summit Ridge do not officially support Windows® 11.
|
| Сертификати | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Гаранция: 36 месеца
Официална страница на продукта:
https://www.asrock.com/mb/AMD/B450M-HDV%20R4.0/index.bg.asp
