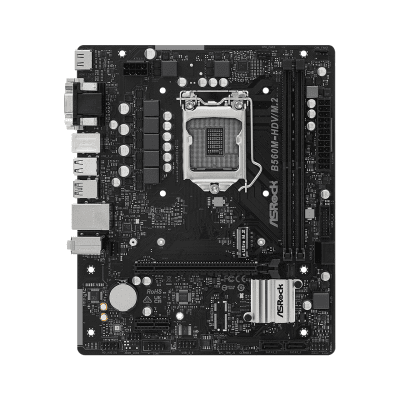

Дънна платка ASRock B560M-HDV/M.2
Арт.№: B560M-HDV/M.2
1 от 4
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Свързаност: 1 x RJ-45, 1 x HDMI, 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x VGA
- Сокет: Intel 1200
- Поддържана памет: DDR4
- Гаранция: 36
- Чипсет: Intel B560
- Дънни платки
- ASRock
Информация
| Уникални функции | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB Програма за инсталиране на автоматични драйвери на ASRock ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Процесор | - Supports 10-то поколение процесори Intel® Core ™ and 11-то поколение процесори Intel® Core ™ (LGA1200) - 5 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology |
| Чипсет | - Intel® B560 |
| Памет | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - 11-то поколение процесори Intel® Core ™ support DDR4 non-ECC, un-buffered memory up to 4000+(OC)* - 10-то поколение процесори Intel® Core ™ support DDR4 non-ECC, un-buffered memory up to 3600+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Изключителен профил на паметта (XMP) 2.0 *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment |
| Графика | - 11-то поколение процесори Intel® Core ™ support Intel® Xe Graphics Architecture (Gen 12). 10-то поколение процесори Intel® Core ™ support Gen 9 Graphics - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports HDMI 2.0 with max. резолюция up to 4K x 2K (4096x2160) @ 60Hz with 11-то поколение процесори Intel® Core ™ - Supports HDMI 1.4 with max. резолюция up to 4K x 2K (4096x2160) @ 30Hz with 10-то поколение процесори Intel® Core ™ - Supports DVI-D with max. резолюция up to 1920x1200 @ 60Hz - Supports D-Sub with max. резолюция up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports - Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11-то поколение процесори Intel® Core ™) *Intel® UHD Graphics Built-in Visuals и VGA изходите могат да бъдат поддържани само с процесори, които имат интегриран GPU.* Графичните спецификации могат да варират между типовете процесори.
**Supports up to 2 displays simultaneously |
| Аудио | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Слотове | 11-то поколение процесори Intel® Core ™ - 1 x PCI Express 4.0 x16 Slot* 10-то поколение процесори Intel® Core ™ - 1 x PCI Express 3.0 x16 Slot* - 1 x PCI Express 3.0 x1 Slot *Поддържа NVMe SSD като дискове за начално зареждане
|
| Съхранение | - 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), поддържа M Тип ключ 2260/2280 M.2 SATA3 6.0 Gb / s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)** *Ако M2_1 е зает от устройство SATA от тип M.2, SATA3_0 ще бъде деактивиран.
**Поддържа NVMe SSD като дискове за начално зареждане Supports ASRock U.2 Kit |
| Конектор | - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis Fan Connector (4-pin)** - 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *Конекторът за вентилатора на CPU поддържа вентилатора на CPU с максимална мощност на вентилатора 1A (12W).
**The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Заден панел с входове и изходи | - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Софтуер и UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - Програма за инсталиране на автоматични драйвери на ASRock - ASRock Мигновен Flash - ASRock Internet Flash *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
|
| CD с поддръжка | - Drivers, Utilities, AntiVirus Software (Trial Version) |
| Аксесоари | - 1 x Ръководство за употреба - 1 x Support CD - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Хардуерен монитор | - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V |
| Форм фактор | - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm - Solid Capacitor design |
| OC | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Сертификати | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Гаранция: 36 месеца
Официална страница на продукта:
https://www.asrock.com/MB/Intel/B560M-HDVM.2/index.bg.asp
