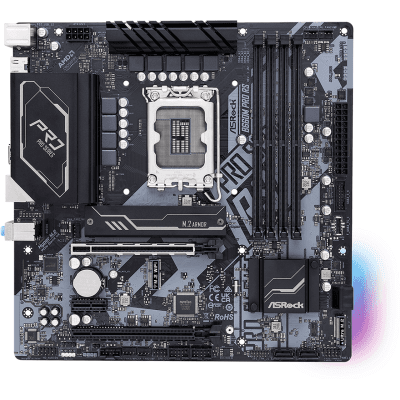

Дънна платка ASRock B660M PRO RS DDR4
Арт.№: B660M PRO RS
1 от 5
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Свързаност: 1 x Display Port, 1 x RJ-45, 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 1 x HD Audio Jacks
- Сокет: Intel 1700
- Поддържана памет: DDR4
- Гаранция: 36
- Чипсет: Intel B660
- Дънни платки
- ASRock
Информация
| Уникални функции | ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Процесор | - Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
| Чипсет | - Intel® B660 |
| Памет | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel® Изключителен профил на паметта (XMP) 2.0 *Supports DDR4 3200 natively.
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Графика | - Intel® Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and Порт за дисплей 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. резолюция up to 4K x 2K (4096x2160) @ 60Hz - Supports Порт за дисплей 1.4 с DSC (компресиран) max. резолюция up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and Порт за дисплей 1.4 Ports *Intel® UHD Graphics Built-in Visuals и VGA изходите могат да бъдат поддържани само с процесори, които имат интегриран GPU.
|
| Аудио | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - nahimic аудио |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
| Слотове | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) - Supports AMD CrossFire™ *Поддържа NVMe SSD като дискове за начално зареждане
|
| Съхранение | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors** *Supports Intel® Optane™ Memory H Series (M2_2 only)
Supports Устройство за управление на силата на обема Intel® (VMD) Поддържа NVMe SSD като дискове за начално зареждане Supports ASRock U.2 Kit ** Ако M2_2 е зает от устройство SATA от тип M.2, SATA3_0 ще бъде деактивиран. |
| RAID | - Поддържа RAID 0, RAID 1, RAID 5 и RAID 10 за SATA устройства за съхранение |
| Конектор | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header * Поддържа общо до 12V / 3A, 36W LED Strip - 3 x Addressable LED Headers * Support in total up to 5V/3A, 15W LED Strip - 1 x CPU Fan Connector (4-pin) * Конекторът за вентилатора на CPU поддържа вентилатора на CPU с максимална мощност на вентилатора 1A (12W). - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) *
|
| Заден панел с входове и изходи | - 3 x Точки за закрепване на антената - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Порт за дисплей 1.4 - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Софтуер и UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Мигновен Flash - ASRock Easy RAID Installer *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
|
| CD с поддръжка | - Drivers, Utilities, AntiVirus Software (Trial Version) |
| Аксесоари | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Хардуерен монитор | - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: CPU Vcore, +1.05V_PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V |
| Форм фактор | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design |
| OC | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Сертификати | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Гаранция: 36 месеца
Официална страница на продукта:
https://www.asrock.com/mb/Intel/B660m%20Pro%20RS/index.bg.asp
