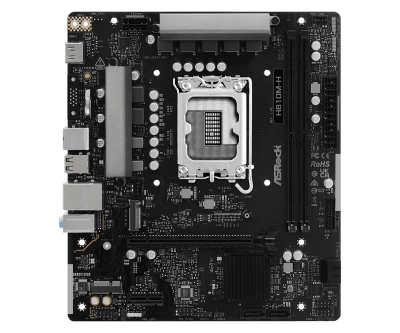

Дънна платка ASROCK H810M-H
Арт.№: H810M-H / H810M-H
1 от 4
ППЦ:
лв.
лв.
164.69
лв.
/
84.20
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Купи на изплащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики
Информация
| Unique Feature | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1+1+1 Power Phase ASRock Intel® 4-Layer Memory POOL Technology EZ Update - ASRock Auto Driver Installer |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration |
| Chipset | Intel® H810 |
| Memory | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 6400* Supports Clocked Unbuffered DIMM (CUDIMM) Max. capacity: 128GB* Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Intel® Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, up to 4K 120Hz* |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H |
| Slots | 1 x PCIe 4.0 x16 Slot (PCIE1) 1 x PCIe 4.0 x1 Slot (PCIE2) 1 x M.2 Socket (Key E), type 2230 WiFi/BT |
| Storage | 1 x Hyper M.2 Socket (M2_1, Key M), type 2280 PCIe Gen4x4 4 x SATA3 6.0 Gb/s Connectors |
| USB | 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (4 Rear, 2 Front) |
| Connector | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x Chassis Fan Connector (4-pin)**** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header 1 x USB 3.2 Gen1 Header |
| Rear Panel I/O | 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks |
| Software and UEFI | ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC* ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash |
| Accessories | 1 x I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket |
| Form Factor | Micro ATX: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| OS | Microsoft Windows® 11 64-bit |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready PSU required) |
Гаранция: 36 месеца
