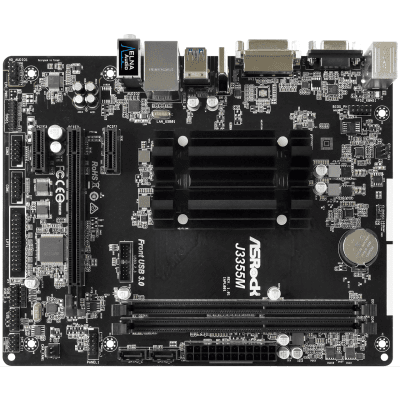

Дънна платка ASROCK J3355M
Арт.№: J3355M
1 от 5
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Свързаност: 1 x RJ-45, 1 x HDMI, 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x VGA
- Поддържана памет: DDR3
- Гаранция: 36
- Поддържани процесори: Intel Dual-Core J3355
- Максимален капацитет поддържана памет: 16 GB
- Дънни платки
- ASRock
Информация
| Unique Feature | ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop |
| CPU | - Intel® Dual-Core Processor J3355 (up to 2.5 GHz) |
| Memory | - Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L DIMM Slots* - Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB** *2GB DRAM per module is not supported.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. Intel® Extreme Memory Profile (XMP) is not supported |
| BIOS | - 64Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 compliant wake up events - Supports jumperfree - SMBIOS 3.0 support |
| Graphics | - Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 700MHz) - DirectX 12, Pixel Shader 5.0 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
|
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Slots | - 1 x PCI Express 2.0 x16 Slot (PCIE2: x1 mode) - 2 x PCI Express 2.0 x1 Slots |
| Storage | - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Connector | - 1 x Print Port Header - 2 x COM Port Headers - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 1 x BIOS_PH Connector - 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Rear Panel I/O | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Power Gear - ASRock XFast LAN* UEFI - ASRock Power Gear - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU, Chassis temperature sensing - CPU, Chassis Fan Tachometer - CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU, Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | - Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm - Solid Capacitor design |
| OS | - Microsoft® Windows® 10 64-bit* - Linux: Ubuntu 16.10 / Fedora 25** *For the updated Windows® 10 driver, please visit ASRock's website for details.
**Linux O/S basic function support only, due to the compatibility of the Liunx system itself, there is no guarantee that all functions are supported. |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Гаранция: 36 месеца
Официална страница на продукта:
https://asrock.com/mb/Intel/J3355M/
