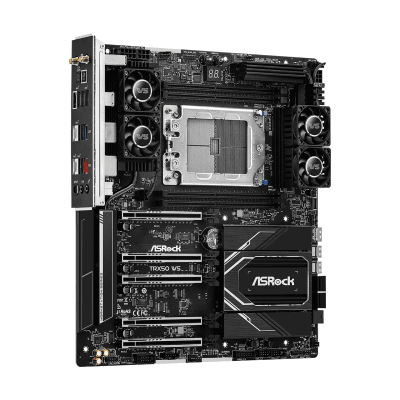

ASROCK TRX50 WS, Socket sTR5, ATX, 4xDDR5
Арт.№: TRX50 WS
1 от 4
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Свързаност: 1 x optical S/PDIF Out connector, 1 x BIOS Flashback Button, 2 x Аudio jacks, 1 x Clear CMOS button, 2 x RJ-45
- Сокет: sTR5
- Поддържана памет: DDR5
- Гаранция: 36
- Чипсет: AMD TRX50
- Дънни платки
- ASRock
Информация
| Уникални функции | Превъзходна производителност - PCIe Gen5 (Graphics, M.2) - Четириканална DDR5 Солидна издръжливост - PCB с ултра ниски загуби - 18+3+3 Power Phase, 110A SPS for VCore - Предварително инсталиран I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Свръхбърза връзка - 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module Актуализация на EZ - BIOS Flashback Button - Програма за инсталиране на автоматични драйвери на ASRock |
| Процесор | - Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors - Supports AMD Socket sTR5 - Supports ASRock Hyper BCLK Engine |
| Чипсет | - AMD TRX50 |
| Памет | - Четириканална DDR5 технология на паметта - 4 x DDR5 DIMM Slots - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC) - Max. capacity of system memory: 1TB |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Графика | - n/a |
| Аудио | - 7.1 CH HD Audio with Защита на съдържанието (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - nahimic аудио |
| LAN | 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) - Support Wake-On-LAN - Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Безжично | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Поддържа Dual-Band 2x2 с разширена поддръжка на 6GHz лента* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. |
| Слотове | CPU: - 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)* - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slots * Поддържа NVMe SSD като дискове за начално зареждане
|
| Съхранение | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode* - 1 x MCIO PCIe Gen5x4 Connector - 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode* - 4 x SATA3 6.0 Gb/s Connectors * Поддържа NVMe SSD като дискове за начално зареждане
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA устройства за съхранение - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe устройства за съхранение* * Изисква допълнителни M.2 NVMe разширителни карти за поддръжка на RAID 10
|
| USB | CPU: - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 4 x USB 2.0 (Front) * All USB ports support ESD Protection
|
| Конектор | - 2 x Thermistor Cable Headers - 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 2 x Addressable LED Headers* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 3 pin ATX Power Connector***** - 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (за Дънна Платка)****** - 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (за Дънна Платка)****** - 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)******* - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED * Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1 supports the fan power up to 1A (12W). *** CPU_FAN2/WP supports the fan power up to 2A (24W). **** CHA_FAN1~3/WP support the fan power up to 2A (24W). ***** Plug the Multi PSU Adaptor Cable that comes with the package to ATX_CON1 if you use a secondary PSU. ****** It is required to connect both ATX12V1 and ATX12V2; otherwise, the system may not boot up properly. ****** It is required to connect all 8 pin and 6 pin 12V Power Connectors when overclocking. ******* It is required to connect a 6 pin PCIE 12V Power Cable to GFX_12V1; otherwise, the system may not boot up properly. |
| Заден панел с входове и изходи | - 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 2 x RJ-45 LAN Ports - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Линеен жак (Gold Audio Jack) - 1 x Жак за вход за микрофон (Gold Audio Jack) |
| Софтуер и UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - Програма за инсталиране на автоматични драйвери на ASRock - ASRock Мигновен Flash *Тези помощни програми можете да изтеглите от Live Update & APP Shop.
|
| Аксесоари | - 1 x Ръководство за употреба - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 2 x Thermistor Cables - 1 x Multi PSU Adaptor Cable - 2 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets |
| Форм фактор | - EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm - 12 Layer PCB - 2oz Copper PCB |
| OC | - Microsoft® Windows® 11 64-bit |
| Сертификати | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Гаранция: 36 месеца
Официална страница на продукта:
https://www.asrock.com/mb/AMD/TRX50%20WS/index.bg.asp
