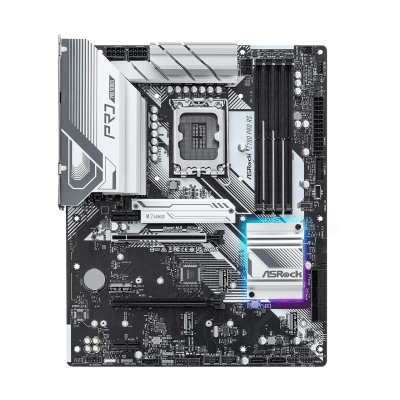

Дънна платка ASROCK Z790 PRO RS DDR5
Арт.№: Z790 PRO RS
1 от 6
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Свързаност: 1 x Display Port, 1 x RJ-45, 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 3 x Audio jacks
- Сокет: Intel 1700
- Поддържана памет: DDR5
- Гаранция: 36
- Чипсет: Intel Z790
- Дънни платки
- ASRock
Информация
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports 14th Gen, 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | - Intel® Z790 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 192GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire™ *Supports NVMe SSD as boot disks
|
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 8 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) *All USB ports support ESD Protection
|
| Connector | - 1 x eDP Signal Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) *Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~5/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Rear Panel I/O | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 5 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit *Windows® 10 only supports version 21H2 or later
|
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Гаранция: 36 месеца
Официална страница на продукта:
https://www.asrock.com/mb/Intel/Z790%20Pro%20RS/
