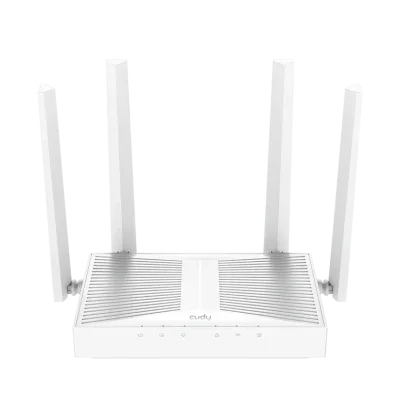

Безжична точка за достъп Cudy AP1300D Wi-Fi Gigabit AC1200
Арт.№: CUDY-AP1300D
1 от 3
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики
Информация
| Model Version | AP1300D 1.0 |
|---|---|
| CPU | 880 MHz Dual-Core CPU |
| Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR3 |
| 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 4× Fixed |
| 5 GHz Antenna Gain Max | 5.3 dBi |
| 2.4 GHz Antenna Gain Max | 5.2 dBi |
| FEM or PA/LNA | 5 GHz: 2× Internal 2.4 GHz: 2× Internal |
| Beamforming | True |
| Range Performance | Max: 170 m (558 ft) |
| Wall Performance | Two wooden walls < 10 cm One concrete wall < 20 cm |
| Gigabit RJ45 Ports | 1 |
| Ethernet Notes | Accepts PoE powering |
| LED | 5 GHz Wi-Fi, 2.4 GHz Wi-Fi, WPS, LAN, Internet, Power |
| Physical Buttons | Reset Button, Power On/Off Button |
| Power Input | DC Jack, PoE via Ethernet Port |
| Power Methods | DC, Passive PoE, 802.3at/af PoE |
| DC | 12V 1A |
| Passive PoE | 12 ~ 57V |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC |
| Max Power Consumption | Max (PoE): 11 W Max (DC): 8.5 W |
| EMS | ESD: Contact: 4kV; Air: 8kV |
| Operating Temperature | -10 ℃ ~ 65 ℃ (14 ℉ ~149 ℉) |
| Storage Temperature | -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Certifications | FCC, CE |
| Installation | Desktop, Wall-mount |
| Dimension | Device: 183.3×109×38 mm (7.22×4.29×1.5 in) Each Antenna: 175 mm (6.89 in) |
| Product Weight | 265.2 g (9.35 oz.) |
| Package Content | AP1300D, Power Adapter, Ethernet Cable, Installation Guide |
| Retail Package Weight | EU: 672.4 g (23.72 oz.) |
| Retail Package Dimension | 330×256×60 mm (12.99×10.08×2.36 in) |
| Units per Carton | 10 |
| Carton Net Weight | EU: 6.7 kg (14.77 lbs) |
| Carton Gross Weight | EU: 7.5 kg (16.53 lbs) |
| Carton Dimension | 52.8×31.7×34.7 cm (20.79×12.48×13.66 in) |
Гаранция: 24 месеца
