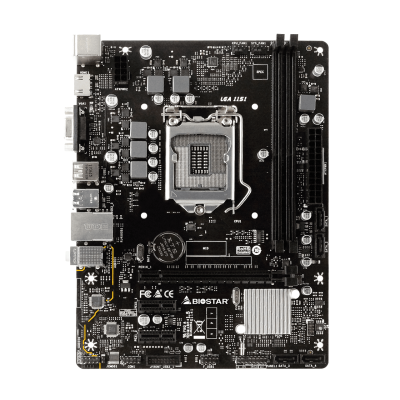

Дънна платка BIOSTAR H310MHP
Арт.№: H310MHP
1 от 5
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Сокет: Intel 1151
- Поддържана памет: DDR4
- Гаранция: 24
- Чипсет: Intel H310
- Поддържани процесори: Intel Socket 1151 for 9th/8th Generation Core
- Дънни платки
- BIOSTAR
Информация
| Chipset | Intel H310 |
| CPU SUPPORT | Socket 1151 for 9th / 8th Gen Intel® Core, Pentium and Celeron processors Maximum CPU TDP (Thermal Design Power): 95Watt * Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6Gb/s) |
| LAN | RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC887 7.1 Channels, High Definition Audio Support HD Audio |
| USB | 4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header) 6x USB 2.0 port (4 on rear I/Os and 2 via internal header) |
| EXPANSION SLOT | 2x PCIe 2.0 x1 Slot 1x PCIe 3.0 x16 Slot |
| REAR I/O | 1x PS/2 Mouse Port 1x PS/2 Keyboard Port 1x HDMI Port 1x VGA Port 1x LAN Port 4x USB 2.0 Port 2x USB 3.2(Gen1) Port 3x Audio Jack |
| INTERNAL I/O | 4x SATA III Connector 1x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports) 1x 8-Pin Power Connector 1x 24-Pin Power Connector 1x CPU Fan Connector 1x System Fan Connector 1x Front Panel Header 1x Front Audio Header 1x Clear CMOS Header 1x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 226mm x 171mm ( W x L ) |
| OS SUPPORT | Supports Windows 7/ 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | BIO-FLASHER |
Гаранция: 24 месеца
Официална страница на продукта:
https://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=954
