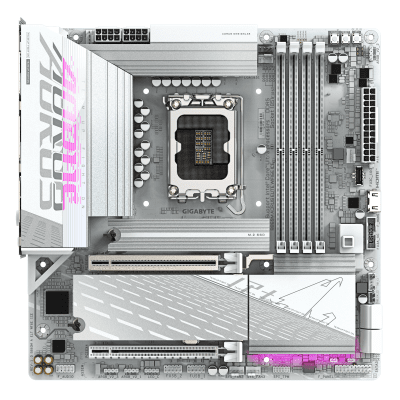

Дънна платка GIGABYTE B860M AORUS ELITE WiFi6E ICE
Арт.№: B860M A ELT WF6E ICE
1 от 5
ППЦ:
лв.
лв.
401.16
лв.
/
205.11
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Купи на изплащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики - Свързаност: 2 x SMA antenna connectors
- Поддържана памет: DDR5
- Брой слотове за памет: 4
- Максимален капацитет поддържана памет: 256 GB
- Поддръжка на Dualchannel: Да
- Дънни платки
- GIGABYTE
Информация
| Specification | Details |
|---|---|
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | Support for DDR5 9200(O.C) down to 6400/5600 MT/s 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) Dual channel Support for ECC and non-ECC Un-buffered DIMM modules Support for XMP memory modules |
| Onboard Graphics | Integrated Intel® HD Graphics 1 x USB4® Type-C®, DisplayPort, up to 3840x2160@144 Hz 1 x DisplayPort, up to 3840x2160@144 Hz 1 x HDMI (rear), up to 4096x2160@60 Hz 1 x HDMI (front), up to 1920x1080@30 Hz Support for up to 4 displays |
| Audio | Realtek® Audio CODEC High Definition Audio, up to 7.1 channels Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Intel® Wi-Fi 6E AX211 (rev. 1.0) or Realtek® RTL8852CE (rev. 1.1) Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz Bluetooth 5.3 11ax 160MHz |
| Expansion Slots | CPU: 1 x PCIe x16 (5.0) Chipset: 1 x PCIe x16 (4.0, x4) |
| Storage Interface | CPU: 1 x M.2 (PCIe 5.0 x4/x2) Chipset: 2 x M.2 (PCIe 4.0 x4/x2) 4 x SATA 6Gb/s RAID 0/1/5/10 for SATA |
| USB | CPU: 1 x USB4® Type-C® (rear) Chipset: 1 x USB 3.2 Gen 2 Type-C (internal) 2 x USB 3.2 Gen 2 Type-A (rear) 2 x USB 3.2 Gen 1 (internal) 4 x USB 3.2 Gen 1 (rear) 8 x USB 2.0/1.1 (4 rear, 4 internal) |
| Internal I/O | 1 x 24-pin ATX, 2 x 8-pin ATX 12V CPU/Water Pump/System Fan headers RGB headers (3 ARGB Gen2, 1 RGB) 3 x M.2 sockets, 4 x SATA Front panel, front audio, USB headers Thunderbolt add-in, TPM header HDMI, power/reset/Q-Flash Plus/reset/CMOS jumpers |
| Back Panel Connectors | 4 x USB 2.0/1.1 4 x USB 3.2 Gen 1 1 x DisplayPort 1 x USB4® Type-C® (DisplayPort) 1 x HDMI 1 x RJ-45 2 x USB 3.2 Gen 2 Type-A 2 x Wi-Fi antenna connectors 2 x audio jacks 1 x S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow detection Fan fail warning, speed control |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
Гаранция: 36 месеца
