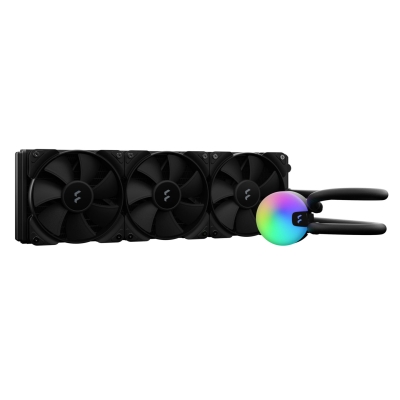

Охлаждане Fractal Design LUMEN S36 V2 RGB
Арт.№: FD-W-L1-S3611 / FD-W-L1-S3611
1 от 3
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики
Информация
| Характеристика | Подробности |
|---|---|
| Sockets supported (Intel) | LGA 1700*/ 1851*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
| Sockets supported (AMD) | AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 |
| * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version | |
| Cold plate material | Copper |
| Thermal paste | Pre-applied |
| Tube length | 400mm |
| Tube material | Low-permeability rubber with braided nylon sleeve |
| Fittings, block side | Articulating 90-degree Elbow |
| Fittings, radiator side | Barbed fitting |
| Block height | 43mm |
| Block measurements (with fittings) | 79 x 67 mm |
| Block diameter (main block body) | 67 mm |
| Fan specifications | |
| Fan type | Aspect 12 PWM |
| Rotational speed | 500–2000 RPM |
| Fan bearing | Rifle bearings |
| Fan PWM control | Yes |
| Fan acoustical noise | <10–33.2 dBA |
| Fan maximum air flow | 13-56 CFM |
| Fan maximum static pressure | 0.230–2.34 mm H2O |
| Fan input voltage | 12V |
| Fan maximum input current | 0.37A |
| Fan MTTF | 90,000 hours |
| Pump specifications | |
| Rotational speed | 4000 ± 10% RPM |
| Bearing type | Ceramic |
| PWM control | No |
| Acoustical noise (full speed) | 22 dBA |
| Maximum pressure | 1.8 mm H2O/ 17.6 kPa / 2.5 PSI |
| Input voltage | 12V DC |
| Input current (without fans) | 0.34 A |
| MTTF | 50 000 hours |
| Radiator specifications | |
| Radiator dimensions | 392 x 120 x 27 mm |
| Radiator housing material | Aluminum |
| Radiator fin material | Aluminum |
| Radiator fan screw threads | 6-32 |
Гаранция: 60 месеца
