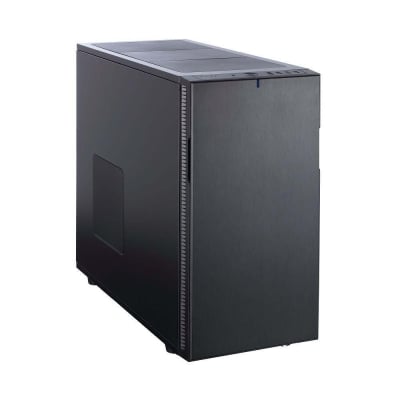

Кутия Fractal Design Define R5, ATX
Арт.№: FD-CA-DEF-R5-BK
1 от 4
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики
Информация
| 3.5" HDD/2.5" SSD positions | 8 |
| 2.5" dedicated SSD unit positions | 2 (fits SSDs up to 12 mm thick) |
| 5.25" bays | 2 (removable) |
| Expansion slots | 7 |
| Front ports | 2x USB 3.0, 2x USB 2.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button |
| Total fan mounts | 9 |
| Front fan | 2x 120/140 mm (included 1x Fractal Design Dynamic GP-14 fan @ 1000 RPM) |
| Top fan | 3x 120/140 mm |
| Rear fan | 1x 120/140 mm (included 1x Fractal Design Dynamic GP-14 fan @ 1000 RPM) |
| Bottom fan | 2x 120/140 mm |
| Side fan | 1x 120/140 mm |
| Dust filters | Front fans, Bottom fans (ejects from the front of the case) |
| Cable routing grommets | Yes |
| Fixed velcro straps | Yes |
| Captive thumbscrews | Right side panel |
| Left side panel | Industrial sound-dampened steel |
| Right side panel | Industrial sound-dampened steel |
| Power supply type | ATX |
| Motherboard compatibility | ATX, Micro ATX, Mini ITX |
| Front radiator | 360, 280, 240, 140 or 120 mm (without drive bays) |
| Top radiator | 420, 360, 280, 240, 140 or 120 mm (a thickness limitation of 55 mm for both radiator + fan applies on 420, 280 and 140 mm radiators; 420 and 360 mm radiators require removal of the ODD bay) |
| Rear radiator | 120 or 140mm |
| Bottom radiator | 120 or 240 mm (Use of radiators in the bottom position limits the PSU length to 165 mm) |
| PSU max length | 190/170 mm with a bottom 120/140 mm fan installed or 300 mm when not using any bottom fan location |
| GPU max length | 310 mm with the top HDD cage installed or 440 mm with the top cage removed |
| CPU cooler max height | 180 mm |
| Cable routing space | 20-35 mm |
| Case dimensions (WxHxD) | 232 x 451 x 521 mm |
| Case dimensions - with feet/screws/protrusions | 232 x 462 x 531 mm |
| Net weight | 10.7 kg |
| Package dimensions (WxHxD) | 327 x 615 x 540 mm |
| Package weight | 12.5 kg |
| Volume | 54.5 liters |
Гаранция: 24 месеца
Официална страница на продукта:
https://www.fractal-design.com/products/cases/define/define-r5/black/
