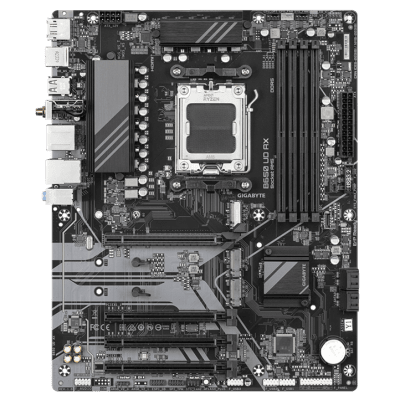

Дънна платка Gigabyte B650 UD AX
Арт.№: B650 UD AX / B650 UD AX 1.0 Y1
1 от 4
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики
Информация
| Характеристики на дънна платка | |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Chipset | AMD B650 Chipset |
| Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Audio | Realtek® Audio CODEC ALC897 High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication module | Realtek® RTL8851 WIFI 6 module - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16) 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2) 1 x PCI Express x16 slot (PCIEX1_3) |
| Storage Interface | 1 x M.2 connector (M2A_CPU) 1 x M.2 connector (M2P_CPU) 1 x M.2 connector (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: - 2 x USB 3.2 Gen 2 Type-A ports - 1 x USB Type-C® port with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports Chipset: - 2 x USB 3.2 Gen 1 ports - 1 x USB Type-C® port with USB 3.2 Gen 1 support - 4 x USB 2.0/1.1 ports Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 1 x addressable RGB Gen2 LED strip header 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header 1 x Q-Flash Plus button 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x USB Type-C® port 2 x USB 3.2 Gen 2 Type-A ports 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Гаранция: 36 месеца
