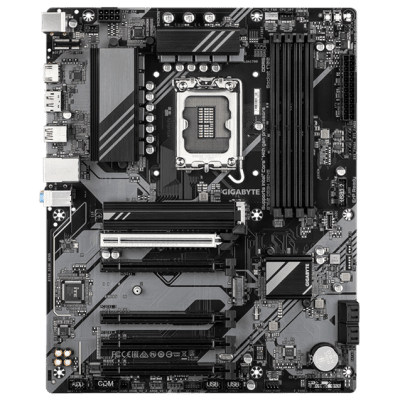

Дънна платка Gigabyte B760 DS3H GEN5
Арт.№: B760 DS3H GEN5 / B760 DS3H GEN5 1.0
1 от 4
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики
Информация
| Характеристики на дънна платка | |
|---|---|
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets supporting up to 256 GB Dual channel memory architecture Max. Speeds: up to DDR5 7600(O.C.) MT/s Support for ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, and XMP modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port (max 4096x2160@60 Hz, HDMI 2.1) - 1 x DisplayPort (max 4096x2304@60 Hz, DP 1.2) |
| Audio | Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (from CPU) 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (from Chipset) |
| Storage Interface | 1 x M.2 connector (M2A_CPU, PCIe 4.0 x4/x2 SSD support, from CPU) 1 x M.2 connector (M2P_SB, PCIe 4.0 x4/x2 SSD support, from Chipset) 4 x SATA 6Gb/s connectors RAID 0, 1, 5, 10 support for SATA devices |
| USB | Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support (internal header) - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports (internal header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports (internal headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V power 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x TPM header 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Гаранция: 36 месеца
