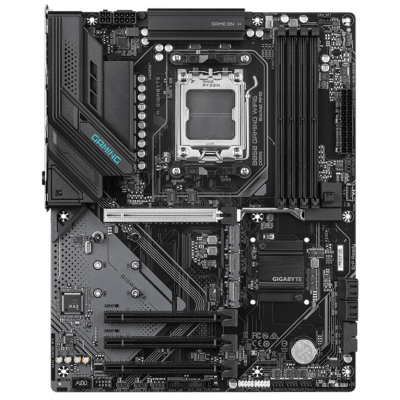

Дънна платка Gigabyte B850 Gaming WIFI6
Арт.№: B850 GAMING WF6 / B850 GAMING WF6 1.0
1 от 4
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики
Информация
| Характеристики на дънна платка | |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000/ 8000/ 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM sockets supporting up to 256 GB Dual channel memory architecture Max. Speeds: up to DDR5 8200(O.C) MT/s Support for non-ECC Un-buffered DIMM, AMD EXPO™, and XMP modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort (max 3840x2160@144 Hz, DP 1.4, HDR) - 1 x HDMI port (max 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR) |
| Audio | Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6 RTL8851BE (WIFI a/b/g/n/ac/ax, BLUETOOTH 5.3) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIe 5.0 x16 from CPU for R9000/R7000) 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (from Chipset) |
| Storage Interface | 2 x M.2 connectors (from CPU: M2A_CPU PCIe 5.0 x4/x2, M2B_CPU PCIe 4.0 x4/x2) 1 x M.2 connector (from Chipset: M2C_SB PCIe 4.0 x2) 4 x SATA 6Gb/s connectors RAID 0, 1, 5, 10 support for NVMe SSDs (RAID 5 for R9000 only) RAID 0, 1, 10 support for SATA devices |
| USB | CPU: 1 x USB Type-C® (USB 3.2 Gen 1, rear), 2 x USB 3.2 Gen 2 Type-A (red, rear) Chipset: 1 x USB Type-C® (USB 3.2 Gen 1, internal header), 4 x USB 3.2 Gen 1 (2 rear, 2 internal header), 4 x USB 2.0/1.1 (rear) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 (internal headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V power 1 x 4-pin ATX 12V power 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x TPM header 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x DisplayPort 1 x HDMI port 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port (USB 3.2 Gen 1) 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Гаранция: 36 месеца
