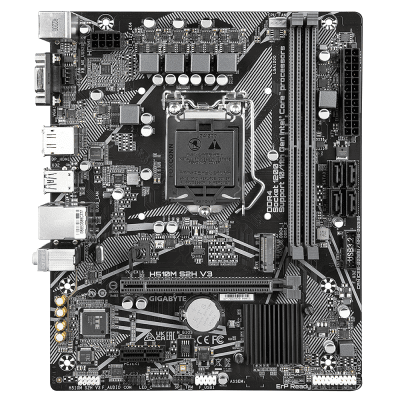

Дънна платка GIGABYTE H510M-S2H V3

Арт.№: H510M-S2H V3
Дънна платка GIGABYTE H510M-S2H V3
1 от 4
Дънна платка GIGABYTE H510M-S2H V3Дънна платка GIGABYTE H510M-S2H V3Дънна платка GIGABYTE H510M-S2H V3Дънна платка GIGABYTE H510M-S2H V3
Безплатна доставка над
600.00

лв.
/
306.78

€
до офис с куриер Спиди
ППЦ:

лв.

лв.
116.46

лв.
/
59.55

€
Валидност на промоцията
до
В наличност
Доставка и плащане
бр.
Купи на изплащане
Резервирай
и вземи от
0886141714
Поръчай по телефона
Направи запитване
отговаряме бързо
Добави в любими
Твоите любими продукти
Сравни
Характеристики
  • Свързаност: 1 x Display Port, 1 x RJ-45, 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 1 x VGA
  • Сокет: Intel 1200
  • Поддържана памет: DDR4
  • Гаранция: 36
  • Чипсет: Intel H510
  • Дънни платки
  • GIGABYTE
Дънна платка GIGABYTE H510M-S2H V3
Дънна платка GIGABYTE H510M-S2H V3
116.46

лв.
/
59.55

€
Купи

Информация

CPU LGA1200 package:
  1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
  3. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
  1. Intel® H470 Express Chipset
Memory
  1. 11th Generation Intel® Core™ i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 10th Generation Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  3. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    * The D-Sub port is only available with the 10th Generation processors.
  4. Support for up to 3 displays at the same time
    * Only available with the 10th Generation processors.
(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
  1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
USB Chipset:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x RGB LED strip header
  6. 1 x M.2 Socket 3 connector
  7. 4 x SATA 6Gb/s connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 1 x USB 2.0/1.1 header
  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 2 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed contro
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 22.6cm x 18.5cm

Гаранция: 36 месеца

Официална страница на продукта:
https://www.gigabyte.com/Motherboard/H510M-S2H-V3-rev-10#kf
