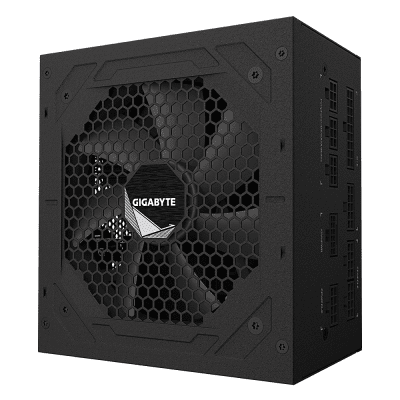

Захранване Gigabyte UD1000GM PG5 1000W 80+ GOLD Modular PCIe 5.0 Ready
Арт.№: GP-UD1000GM-PG5
1 от 6
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Форм фактор: ATX
- Сертификати: 80 PLUS Gold
- Гаранция: 60
- Мощност: 1000 W
- PFC: Active PFC
- Захранвания
- GIGABYTE
Информация
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
Официална страница на продукта:
https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-rev-10#kf
