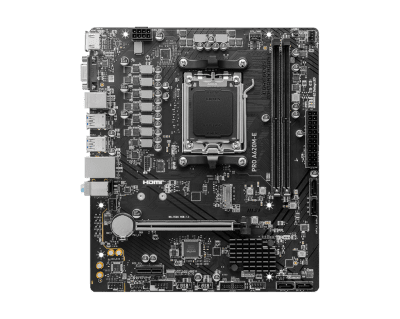

Дънна платка MSI PRO B650M-E

Арт.№: 4711377093804 / 911-7E28-014
Дънна платка MSI PRO B650M-E
1 от 3
Дънна платка MSI PRO B650M-EДънна платка MSI PRO B650M-EДънна платка MSI PRO B650M-E
Неналичен
Неналичен
Доставка и плащане

Продуктът вече е разпродаден, оставете Вашата ел. поща, за да Ви уведомим щом го получим отново или да Ви предложим негов заместител.

Ел. поща
Добави в любими
Твоите любими продукти
Сравни
Характеристики
Дънна платка MSI PRO B650M-E
Дънна платка MSI PRO B650M-E

Информация

Feature Details
Chipset AMD B650
CPU Support
  • Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  • Socket AM5
Memory
  • 2x DDR5, Maximum Memory Capacity 128GB
  • Supports DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports AMD EXPO
Onboard Graphics
  • 1x HDMI™
    • Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  • 1x VGA
    • Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot
    • Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
Storage
  • 1x M.2
    • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
LAN Realtek® RTL8111H Gigabit LAN
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
LED Feature 4x EZ Debug LED

Гаранция: 36 месеца
