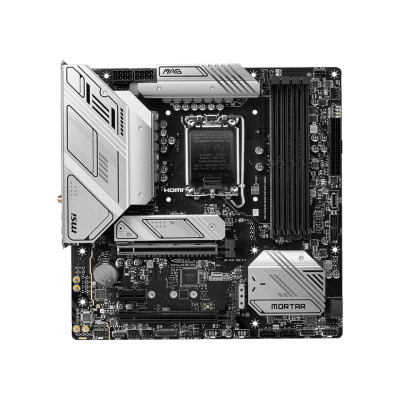

Дънна платка MSI MAG B760M MORTAR WIFI DDR4

Арт.№: MAG_B760M_MORTAR_WIFI_DDR4
Дънна платка MSI MAG B760M MORTAR WIFI DDR4
1 от 3
Дънна платка MSI MAG B760M MORTAR WIFI DDR4Дънна платка MSI MAG B760M MORTAR WIFI DDR4Дънна платка MSI MAG B760M MORTAR WIFI DDR4
Неналичен
Неналичен
Доставка и плащане

Продуктът вече е разпродаден, оставете Вашата ел. поща, за да Ви уведомим щом го получим отново или да Ви предложим негов заместител.

Ел. поща
Добави в любими
Твоите любими продукти
Сравни
Характеристики
  • Процесор: Intel 12th Gen, Intel 13th Gen
  • Сокет: Intel 1700
  • Макс. брой инсталирани процесори: 1
  • Поддържана памет: DDR4
  • Форм фактор на паметта: DIMM 288-pin
  • Дънни платки
  • MSI
Дънна платка MSI MAG B760M MORTAR WIFI DDR4
Дънна платка MSI MAG B760M MORTAR WIFI DDR4

Информация

Chipset INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
Memory 4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics 1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11."
Audio Realtek® ALC897 Codec
7.1-Channel USB High Performance Audio
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  1. USB 2.0
  2. Display Port
  3. USB 3.2 Gen 2 10Gbps
  4. 2.5G LAN
  5. Audio Connectors
  6. HDMI™
  7. USB 3.2 Gen 2x2 20Gbps (Type-C)
  8. USB 3.2 Gen 2 10Gbps
  9. Wi-Fi / Bluetooth
  10. Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension mATX
243.84mmx243.84mm
BOX CONTENT

Официална страница на продукта:
https://www.msi.com/Motherboard/MAG-B760M-MORTAR-WIFI-DDR4
