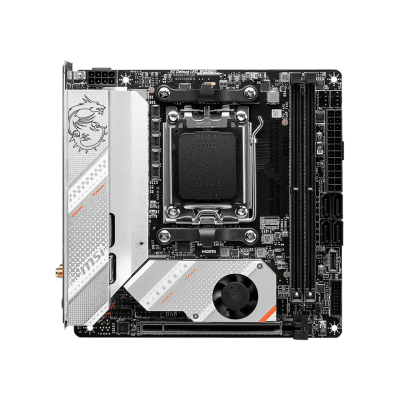

Дънна платка MSI MPG B650I EDGE WIFI

Арт.№: MPG_B650I_EDGE_WIFI
Дънна платка MSI MPG B650I EDGE WIFI
1 от 4
Дънна платка MSI MPG B650I EDGE WIFIДънна платка MSI MPG B650I EDGE WIFIДънна платка MSI MPG B650I EDGE WIFIДънна платка MSI MPG B650I EDGE WIFI
Неналичен
Неналичен
Доставка и плащане

Продуктът вече е разпродаден, оставете Вашата ел. поща, за да Ви уведомим щом го получим отново или да Ви предложим негов заместител.

Ел. поща
Добави в любими
Твоите любими продукти
Сравни
Характеристики
  • Процесор: AMD Ryzen 7000
  • Сокет: AMD AM5
  • Макс. брой инсталирани процесори: 1
  • Поддържана памет: DDR5
  • Форм фактор на паметта: DIMM 288-pin
  • Дънни платки
  • MSI
Дънна платка MSI MPG B650I EDGE WIFI
Дънна платка MSI MPG B650I EDGE WIFI

Информация

Chipset AMD B650I
CPU Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5B650I
Memory 2x DDR5, Maximum Memory Capacity 64GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz

Support Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™B650I
Onboard Graphics Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x HDMIB650I
Slot 1x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) B650I
Storage 2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G (Qty)B650I
RAID Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devicesB650I
USB 2x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)B650I
LAN Realtek® RTL8125BG 2.5Gbps LANB650I
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.B650I
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panelB650I
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C portsB650I
LED FEATURE 4x EZ Debug LEDB650I
BACK PANEL PORTS
  1. Clear CMOS Button
  2. USB 3.2 Gen 1 5Gbps (Type-A)
  3. 2.5G LAN
  4. Wireless / Bluetooth
  5. Audio Connectors
  6. Flash BIOS Button
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 2x2 20Gbps (Type-C)
B650I
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bitB650I
PCB Info Mini-ITX
170mmx170mmB650I
BOX CONTENT B650I

Официална страница на продукта:
https://www.msi.com/Motherboard/MPG-B650I-EDGE-WIFI
