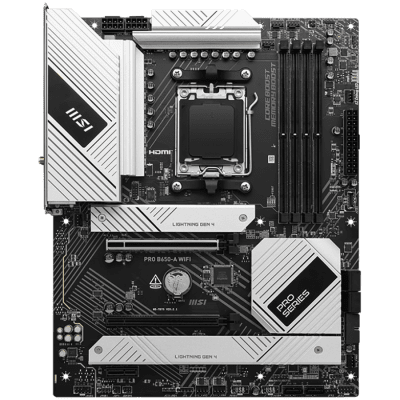

Дънна платка MSI PRO B650-A WIFI

Арт.№: PRO_B650-A_WIFI
MSI PRO B650-A WIFI, ATX, Socket AM5, Dual Channel DDR5 7600+(OC)MHz, 2x PCIe x16 slot, 3x M.2 slots, 1x HDMI, 1x DP, 2xUSB 2.0, 4xUSB 5Gbps Type A, 3xUSB 10Gbps Type A, 1xUSB 20Gbps Type C, 7.1 HD Audio, 2.5Gbps LAN, Wi-Fi 6E, BT 5.3
1 от 3
MSI PRO B650-A WIFI, ATX, Socket AM5, Dual Channel DDR5 7600+(OC)MHz, 2x PCIe x16 slot, 3x M.2 slots, 1x HDMI, 1x DP, 2xUSB 2.0, 4xUSB 5Gbps Type A, 3xUSB 10Gbps Type A, 1xUSB 20Gbps Type C, 7.1 HD Audio, 2.5Gbps LAN, Wi-Fi 6E, BT 5.3MSI PRO B650-A WIFI, ATX, Socket AM5, Dual Channel DDR5 7600+(OC)MHz, 2x PCIe x16 slot, 3x M.2 slots, 1x HDMI, 1x DP, 2xUSB 2.0, 4xUSB 5Gbps Type A, 3xUSB 10Gbps Type A, 1xUSB 20Gbps Type C, 7.1 HD Audio, 2.5Gbps LAN, Wi-Fi 6E, BT 5.3MSI PRO B650-A WIFI, ATX, Socket AM5, Dual Channel DDR5 7600+(OC)MHz, 2x PCIe x16 slot, 3x M.2 slots, 1x HDMI, 1x DP, 2xUSB 2.0, 4xUSB 5Gbps Type A, 3xUSB 10Gbps Type A, 1xUSB 20Gbps Type C, 7.1 HD Audio, 2.5Gbps LAN, Wi-Fi 6E, BT 5.3
Неналичен
Неналичен
Доставка и плащане

Продуктът вече е разпродаден, оставете Вашата ел. поща, за да Ви уведомим щом го получим отново или да Ви предложим негов заместител.

Ел. поща
Добави в любими
Твоите любими продукти
Сравни
Характеристики
Дънна платка MSI PRO B650-A WIFI
Дънна платка MSI PRO B650-A WIFI

Информация

Характеристики на дънна платка
Chipset AMD B650
CPU Support Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ ... / 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics 1x HDMI™ (4K 60Hz Max)
1x DisplayPort (8K 60Hz Max)
*Available only on processors featuring integrated graphics.
Slot 2x PCI-E x16 slot (Supports x16/x2 or lower depending on CPU)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio Realtek® ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage 3x M.2 (M.2_1/M.2_2 From CPU up to PCIe 4.0 x4, M.2_3 From Chipset up to PCIe 4.0 x4)
6x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB Rear: 2x USB 2.0, 4x USB 5Gbps Type A, 3x USB 10Gbps Type A, 1x USB 20Gbps Type C
Front: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C
LAN Realtek® RTL8125B 2.5Gbps LAN
Internal IO 1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller (JDASH), 2x ARGB V2, 2x JRGB, 1x TPM header, 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E (pre-installed M.2 Key-E slot)
Supports 802.11 a/b/g/n/ac/ax
Supports Bluetooth® 5.3**
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS DisplayPort, 2.5G LAN, USB 2.0, USB 5Gbps Type-A, Wi-Fi / Bluetooth, Audio Connectors, Flash BIOS Button, HDMI™, USB 10Gbps Type-A, USB 20Gbps Type-C, Optical S/PDIF OUT
PCB Info ATX
243.84mm x 304.8mm

Гаранция: 36 месеца
