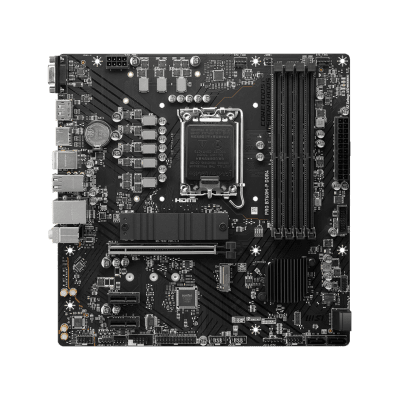

Дънна платка MSI PRO B760M-P DDR4
Арт.№: PRO_B760M-P_DDR4
1 от 3
ППЦ:
лв.
лв.
179.41
лв.
/
91.73
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Купи на изплащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики - Процесор: Intel 12th Gen, Intel 13th Gen
- Сокет: Intel 1700
- Макс. брой инсталирани процесори: 1
- Поддържана памет: DDR4
- Форм фактор на паметта: DIMM 288-pin
- Дънни платки
- MSI
Информация
| Chipset | INTEL B760 |
| CPU SUPPORT | Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | 1x HDMI™ 1x DisplayPort 1x VGA Support HDMI™ 1.4, maximum resolution of 4K 30Hz* Support DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | mATX 243.84mmx243.84mm |
| BOX CONTENT |  |
Официална страница на продукта:
https://www.msi.com/Motherboard/PRO-B760M-P-DDR4/Overview
