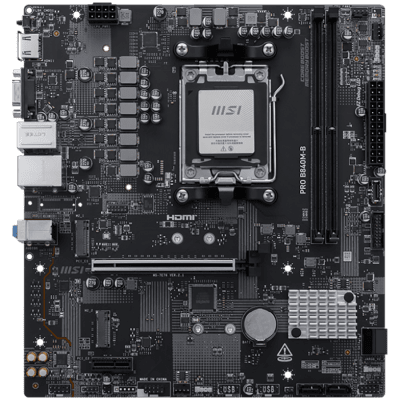

Дънна платка MSI PRO B840M-B
Арт.№: PRO_B840M-B
1 от 3
ППЦ:
лв.
лв.
197.86
лв.
/
101.16
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Купи на изплащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики
Информация
| Характеристики на дънна платка | |
|---|---|
| Chipset | AMD B840 |
| CPU Support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics | 1x HDMI™ (4K 60Hz Max) 1x VGA (2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Max) *Available only on processors featuring integrated graphics. |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (M.2_1/M.2_2 From CPU up to PCIe 4.0 x4) 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | Rear: 2x USB 2.0, 4x USB 5Gbps Type A Front: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 5Gbps Type C |
| LAN | Realtek® 8125D 2.5G LAN |
| Internal IO | 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 3x ARGB V2, 1x JRGB, 1x TPM header, 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| BACK PANEL PORTS | Clear CMOS Button, HDMI™, VGA, USB 5Gbps Type-A, 2.5G LAN, Audio connectors, Flash BIOS Button, USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB Info | mATX 226mm x 243.84mm |
Гаранция: 36 месеца
