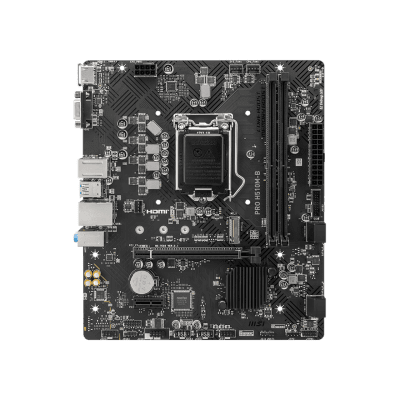

Дънна платка MSI PRO H510M-B DDR4
Арт.№: PRO_H510M-B
1 от 3
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Процесор: Intel 10th Gen
- Сокет: Intel 1200
- Макс. брой инсталирани процесори: 1
- Поддържана памет: DDR4
- Форм фактор на паметта: DIMM 288-pin
- Дънни платки
- MSI
Информация
| Chipset | INTEL H470 |
| CPU SUPPORT | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN | Realtek® 8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | mATX 202mmx236mm |
| BOX CONTENT |  |
Гаранция: 36 месеца
Официална страница на продукта:
https://www.msi.com/Motherboard/PRO-H510M-B/Overview
