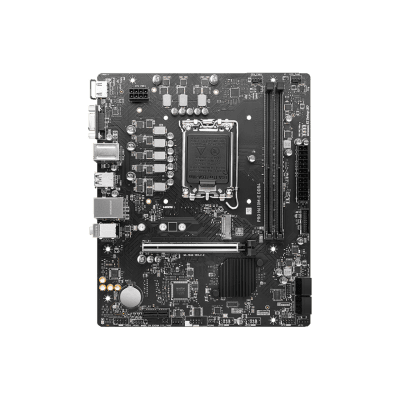

Дънна платка MSI PRO H610M-E DDR4

Арт.№: PRO_H610M-E_DDR4
Дънна платка MSI PRO H610M-E DDR4
1 от 3
Дънна платка MSI PRO H610M-E DDR4Дънна платка MSI PRO H610M-E DDR4Дънна платка MSI PRO H610M-E DDR4
Безплатна доставка над
600.00

лв.
/
306.78

€
до офис с куриер Спиди
ППЦ:

лв.

лв.
117.85

лв.
/
60.26

€
Валидност на промоцията
до
В наличност
Доставка и плащане
бр.
Купи на изплащане
Резервирай
и вземи от
0886141714
Поръчай по телефона
Направи запитване
отговаряме бързо
Добави в любими
Твоите любими продукти
Сравни
Характеристики
  • Процесор: Intel 12th Gen, Intel 13th Gen
  • Сокет: Intel 1700
  • Макс. брой инсталирани процесори: 1
  • Поддържана памет: DDR4
  • Форм фактор на паметта: DIMM 288-pin
  • Дънни платки
  • MSI
Дънна платка MSI PRO H610M-E DDR4
Дънна платка MSI PRO H610M-E DDR4
117.85

лв.
/
60.26

€
Купи

Информация

Processor
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
  • Processor socket LGA1700
  1. Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors
Chipset

Intel® H610 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  1. Please refer to www.msi.com for more information on compatible memory.

See supported memory
Expansion Slot
  • 1x PCIe x16 slot (From CPU)
    • Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot (From H610 chipset)
    • Supports PCIe 3.0 x1
Onboard Graphics
  • 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
  • 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
    1. Available only on processors featuring integrated graphics.
    2. Graphics specifications may vary depending on the CPU installed.
SATA Ports
  • 4x SATA 6Gb/s ports (From H610 chipset)
M.2 SSD Slot
  • 1x M.2 slot (Key M) (from CPU)
    • Supports up to PCIe 3.0 x4
    • Supports up to SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
Audio

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1x Realtek® RTL8111H 1Gbps LAN controller
Power Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin +12V power connector
Internal USB Connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
    • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 2x USB 2.0 Type-A connectors (From Hub-GL850G)
    • Supports additional 4 USB 2.0 ports
Fan Connectors
  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectors
System Connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Serial port connector
Jumpers
  • 1x Clear CMOS jumper
LED Features
  • 1x 4-pin RGB LED connector
  • 4x EZ Debug LED

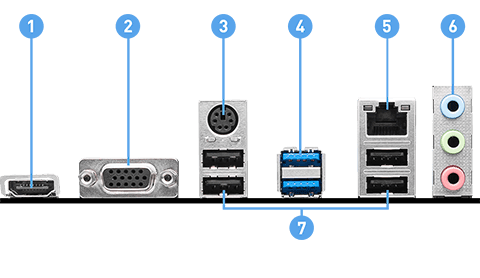

Back panel ports
  1. HDMI™
  2. VGA
  3. Keyboard / Mouse
  4. USB 3.2 Gen 1 5Gbps Type-A
  5. LAN port
  6. Audio connector
  7. USB 2.0
MSI PRO H610M-B DDR4 back panel ports
Dimensions
  • M-ATX Form Factor
  • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

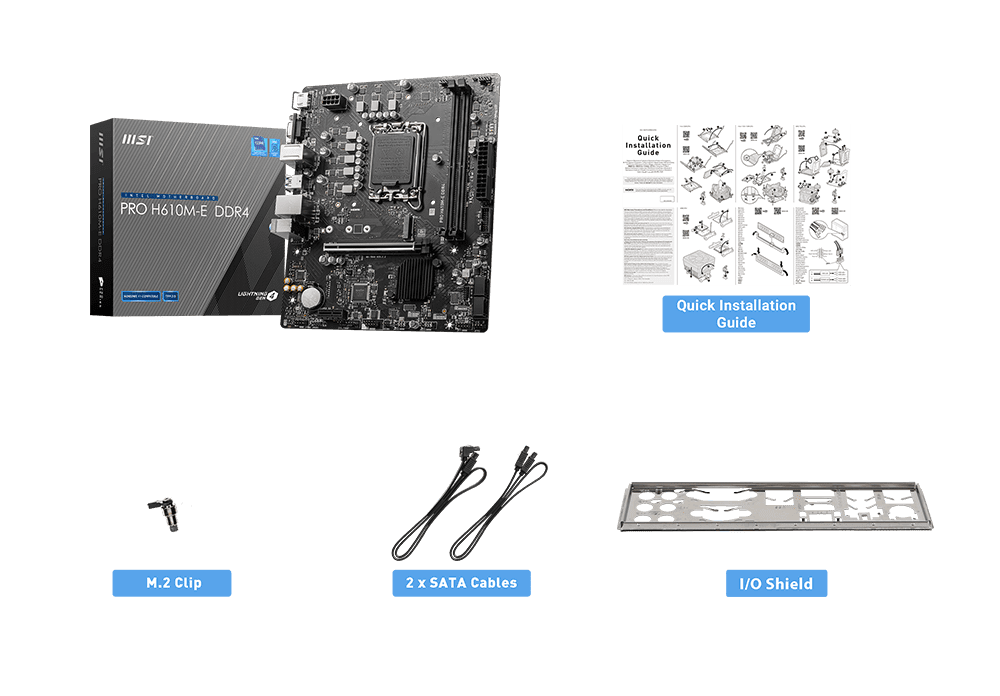

Box content MSI PRO PRO-H610M-E-DDR4 DDR4 box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.

Гаранция: 36 месеца

Официална страница на продукта:
https://www.msi.com/Motherboard/PRO-H610M-E-DDR4
