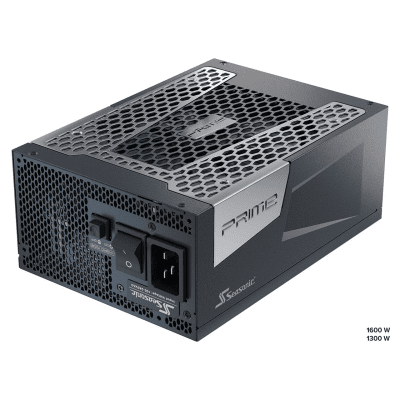

Захранване Seasonic PRIME TX-1600 TR2, 1600W, 80+ Titanium PCIe Gen 5, Full Modular
Арт.№: SSR-1600TR2
1 от 5
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики - Форм фактор: ATX
- Сертификати: 80 PLUS® Titanium
- Гаранция: 144
- Мощност: 1600 W
- PFC: Active PFC
- Захранвания
- SEASONIC
Информация
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Titanium | |
| Cybenetics Efficiency Level | Titanium | |
| Cybenetics Noise Level | Lambda A | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 210 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Premium Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Cable type | Connector(s) per cable | Total Length (mm) | Number(s) of cable(s) included |
|---|---|---|---|
| MB (24/20 pins) | 1 | 610 | 1 |
| CPU (8/4 pins) | 1 | 700 | 3 |
| PCIe (8/6 pins) | 2 | 750 | 0 |
| PCIe (8/6 pins) | 1 | 750 | 8 |
| SATA | 4 | 950 | 4 |
| SATA | 4 | 860 | 0 |
| SATA | 4 | 760 | 0 |
| SATA 3.3 V | 2 | 550 | 1 |
| SATA | 2 | 570 | 0 |
| SATA | 2 | 470 | 0 |
| SATA | 2 | 450 | 0 |
| Molex | 3 | 690 | 1 |
| Molex | 2 | 470 | 0 |
| 12VHPWR | 1 (12+4 Pins to 8+8 Pins) | 750 | 2 |
Гаранция: 144 месеца
Официална страница на продукта:
https://seasonic.com/prime-tx
